LINK CORE

LoRaWAN Gateway for Building Management Systems and Building Monitoring

LINK CORE is a LoRaWAN gateway for building management systems, designed to centralize remote meter reading and remote control of a building’s IoT devices.

The data collected by LoRaWAN devices is transmitted to the NAVIXIS platform to monitor the network, analyze the information, and track the devices remotely.

  • Connected

    Connected

    Remote meter reading and remote control of LoRaWAN devices via the NAVIXIS monitoring platform

  • Ready to use!

    Ready to use!

    Plug in the gateway, scan its QR code, and quickly activate your LoRaWAN network

  • Secure

    Secure

    Data and communications are protected. LINK CORE complies with European RED standards for cybersecurity.

  • LoRaWAN

  • LTE 4G

  • Ethernet

Product sheet Request a quote

Collect data easily. Monitor remotely. Deploy at scale.

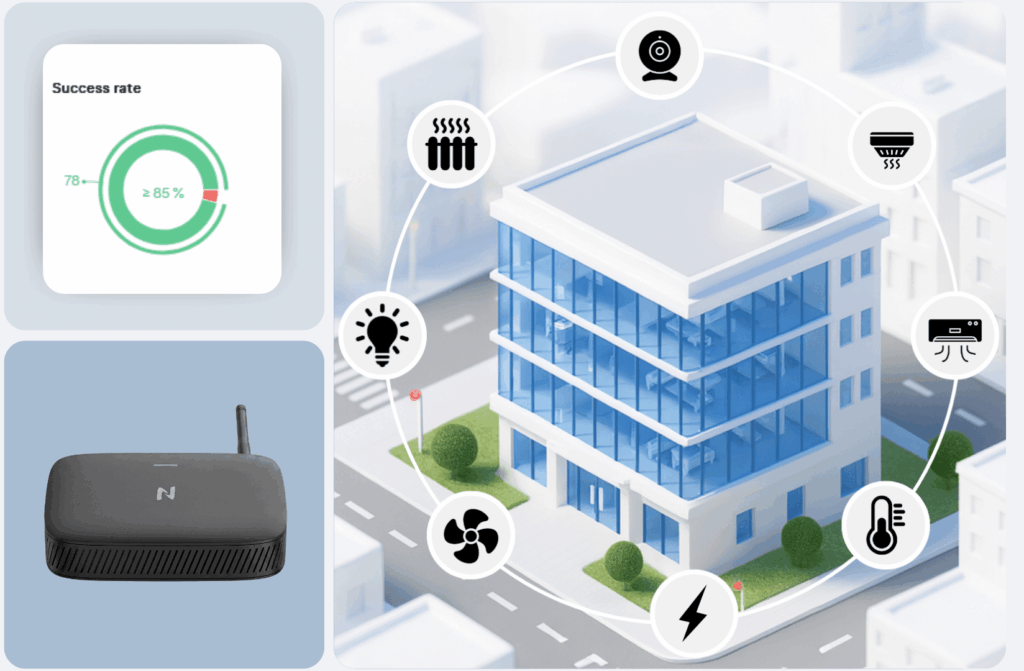

LINK CORE centralizes the LoRaWAN devices installed in the building and transmits their data to NAVIXIS to facilitate building monitoring and the operation of the IoT network.

  • A robust, waterproof enclosure, ideal for both indoor and outdoor installation.

  • LoRaWAN, 4G LTE and Ethernet enable communication between the devices and the NAVIXIS platform.

  • Monitoring and management enable deviations to be identified and the building’s energy consumption to be optimised.

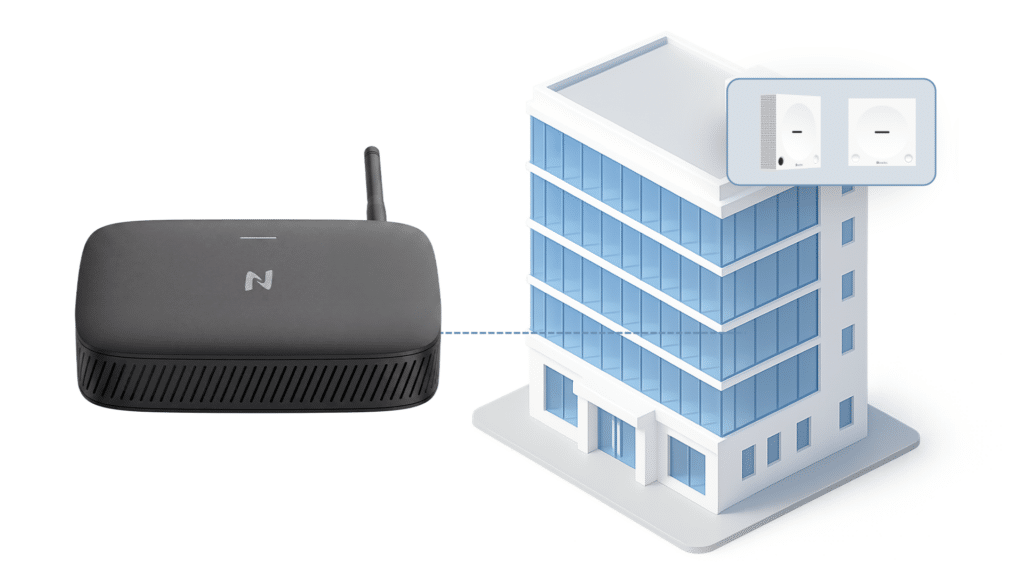

An All-in-One LoRaWAN Gateway for Building Management Systems

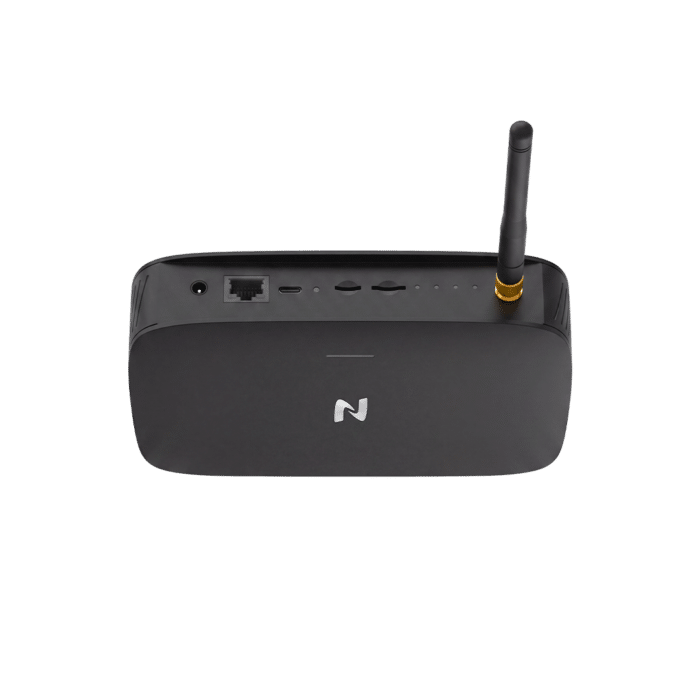

LINK CORE combines a LoRaWAN gateway, a 4G LTE connection, Ethernet access, and a monitoring software platform in a compact, ready-to-install enclosure.

It enables the deployment and operation of a fleet of IoT devices while maintaining centralized, remote monitoring through NAVIXIS.

Build Your LoRaWAN Network

Easy to configure and install, the DESK gateway is the ideal choice for rapidly deploying a private LoRaWAN network. Its sleek, elegant design enables the gateway to be discreetly integrated into any type of building.

Multiple Connectivity Options

Secure 4G LTE access with integrated SIM card for remote monitoring. The box is independent of the building's Internet network for faster installation. Traditional access via Ethernet is also possible

A comprehensive solution for building monitoring

Designed for professional projects

Simple installation, multiple connectivities and dedicated technical support to facilitate multi-site deployments

Usable data

Information is contextualized, historized and accessible for analysis, monitoring and optimization of usage.

NAVIXIS IoT supervision

Global visualization of LoRaWAN gateways and devices from a single NAVIXIS interface

NAVIXIS: centralized supervision software

LINK CORE is integrated with the NAVIXIS platform, providing direct access to network monitoring and control features.

Discover Navixis

LoRaWAN network management

Monitoring signal strength, transmission quality, equipment consumption

3-year secure storage

Data stored on secure servers for 3 years

Analysis and contextualization

Link sensors to their locations in the building for precise vision and simplified maintenance

Automatic alerts

Immediate notification of equipment anomalies, disconnections or faults

Features

  • Terms of use

    Indoor environment (IP30 protection)
    Temperature: -10°C to +55˚C
    Humidity: 10% RH to 95% RH (non-condensing)

  • Set contents

    1 LINK CORE gateway
    1 LoRaWAN 3dBI antenna
    1 multi-carrier SIM card
    1 wall-mount kit
    1 DIN rail mounting kit
    1 12V AC adapter with power plug

  • Connectivity

    • Smoke alarm. 10-year battery / Détecteur de fumée
    • LTE connectivité

  • Mounting type

    Wall-mounted, ceiling-mounted, DIN rail-mounted or free-standing

  • Warranty

    2 years*

  • Certification

Reference

Reference Connectivity LoRaWAN
C120LR LTE / Ethernet EU868
Technical documentation

A LoRaWAN gateway suitable for all buildings

LINK CORE helps professionals deploy IoT networks across a single building or multiple sites.

LINK CORE collects data from LoRaWAN devices used for heating, consumption monitoring and energy management.

This information can be analysed in NAVIXIS to identify anomalies and improve the building’s performance.

The gateway centralises the data from the LoRaWAN sensors monitoring air quality, temperature and humidity.

This gives building managers a comprehensive overview of indoor conditions.

LINK CORE enables the connection and monitoring of LoRaWAN devices used for security purposes.

Alerts and anomalies can be centralised in NAVIXIS to speed up their processing.

NAVIXIS enables users to view bridges, equipment and data from multiple vessels via a centralised interface.

This approach simplifies the management of building portfolios and facilities spread across different sites.
FLOW PRO
QAI
Securité

Easy installation

LINK CORE is designed for quick setup.

Plug in the AC adapter, set up the LoRaWAN antenna, and scan the QR code to activate the network.

The built-in multi-carrier SIM card allows you to use the 4G LTE connection without relying on the building’s Internet network.

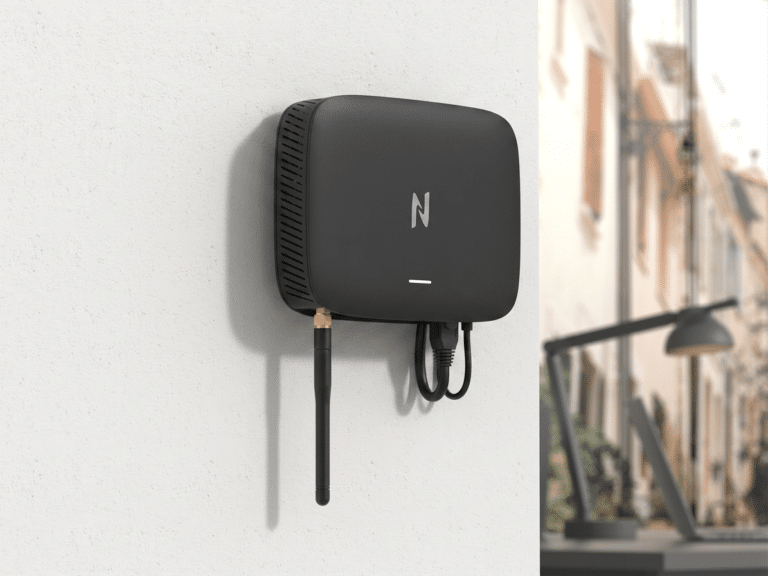

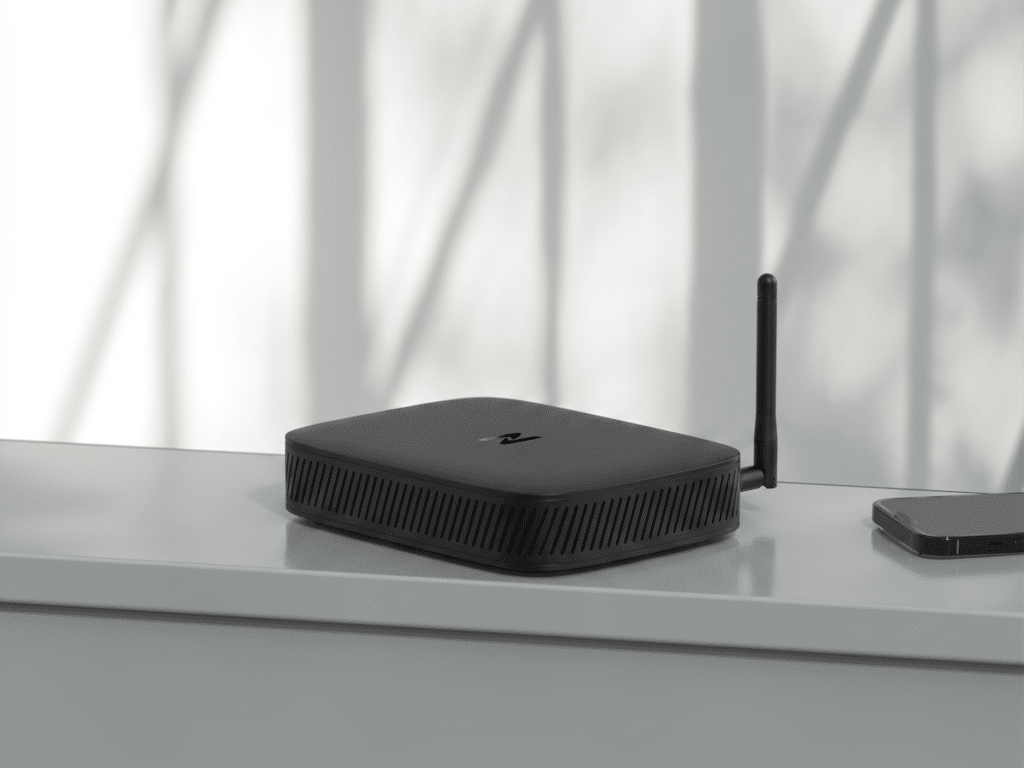

Using the kits provided, the gateway can be mounted on a wall, ceiling, or DIN rail, or simply placed on a desk.

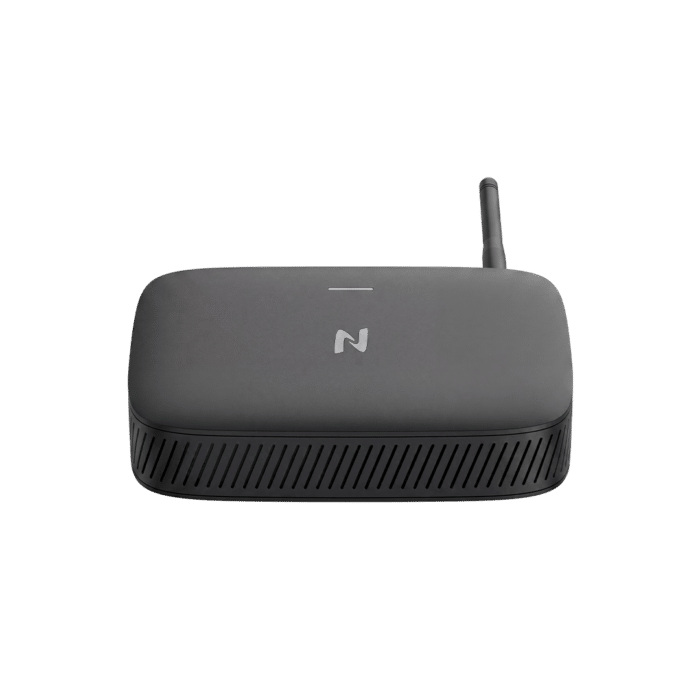

Sober, discreet design

The LINK CORE’s compact housing is designed to blend seamlessly into commercial buildings.

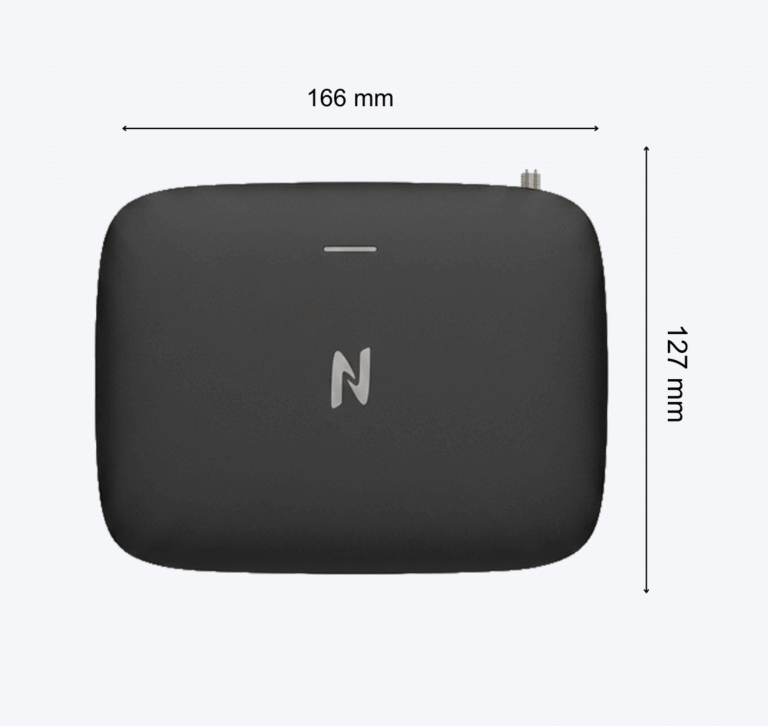

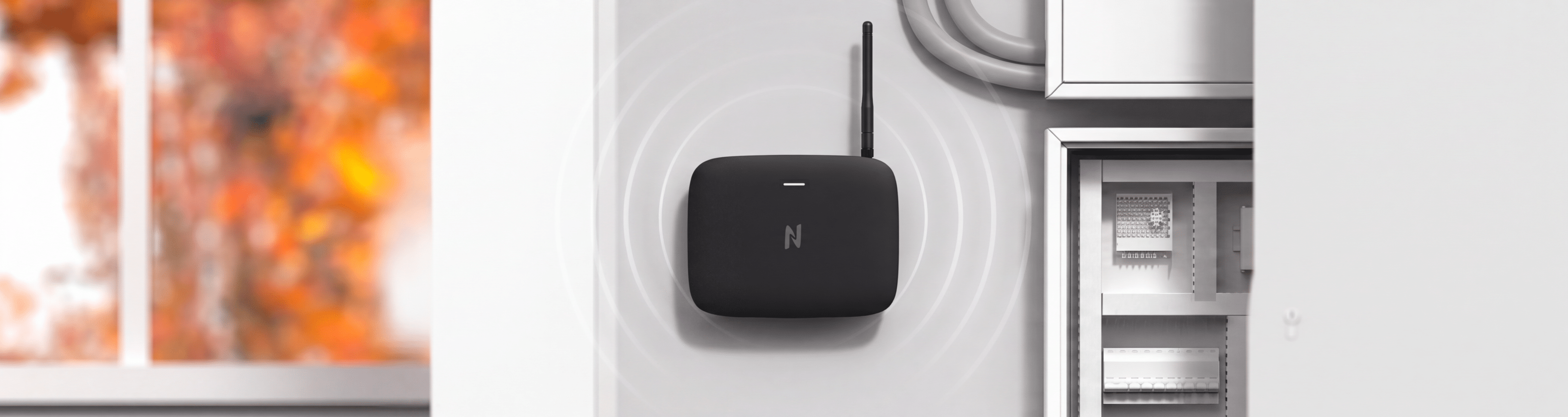

Measuring 166 × 127 × 36 mm and weighing 300 g, the gateway can be installed in an office, a public area, a utility room, or an electrical panel.

Complementary products

Accessories

*Please refer to the information on the support.nexelec.fr website.
