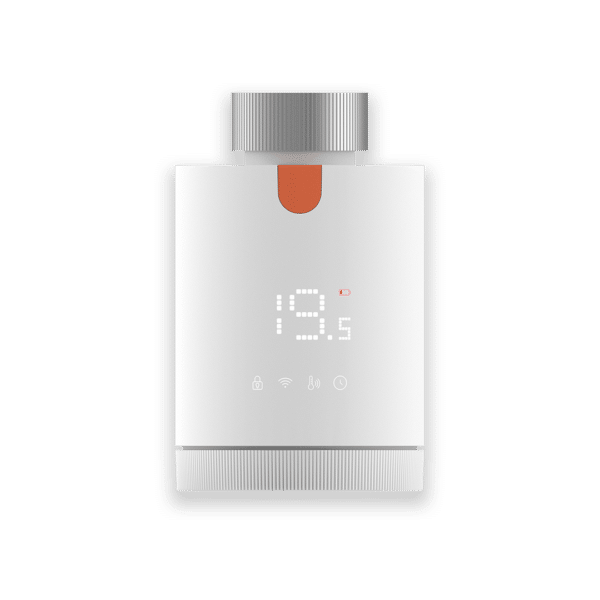

LoRaWAN connected thermostatic radiator valve for collective buildings

FLOW PRO is a LoRaWAN connected thermostatic radiator valve designed to improve heating control in collective housing, hotels, schools, hospitals, offices, public buildings and tertiary facilities.

Installed directly on a hot water radiator, FLOW PRO regulates heating room by room according to setpoints and schedules stored in memory. This local regulation helps reduce overheating, improve occupant comfort and optimize energy consumption across the building.

Thanks to its LoRaWAN connectivity, FLOW PRO enables remote supervision, parameter updates, equipment monitoring and centralized heating management. It is designed for building managers who need a robust, scalable and reliable solution for connected heating control.

Local regulation, even without network connection

FLOW PRO stores its heating schedules directly in memory. This means the thermostatic radiator valve continues to regulate heating locally, even if the LoRaWAN network is temporarily unavailable.

The wireless network is used to supervise equipment, adjust parameters, receive alerts and update the product remotely. The heating regulation itself does not rely on permanent cloud commands, which improves operational continuity.

Designed for BMS and professional buildings

FLOW PRO is designed to support Building Management System strategies. It helps operators manage heating schedules, adjust setpoints, monitor equipment status and optimize thermal comfort across a building or multi-site property portfolio.

Its reinforced design makes it suitable for demanding shared environments such as schools, hospitals, collective housing, hotels and public buildings.

Up to 12 years of battery life

FLOW PRO operates with 4 replaceable lithium AA batteries and can reach up to 12 years of battery life depending on product settings and usage conditions.

This long battery life helps reduce maintenance campaigns, limit on-site interventions and simplify the management of large equipment fleets.

More accurate regulation with NODE

The temperature measured directly at the radiator can be affected by heat convection, sunlight, curtains or air drafts. FLOW PRO can be combined with the NODE remote temperature sensor to measure the actual room temperature away from the radiator.

This improves regulation accuracy, stabilizes comfort and helps maintain a temperature closer to the defined setpoint.

Designed for the FLOW ecosystem

FLOW PRO is part of the Nexelec FLOW ecosystem. It can be combined with the NODE remote temperature sensor for more accurate room temperature measurement, ADAPT adapters for installation on existing radiators, CASE+ protective cover for shared environments and NAVIXIS for remote supervision.

Features of the FLOW PRO connected thermostatic radiator valve

Connectivity

LoRaWAN
Remote control, supervision, data feedback and parameter updates via a LoRaWAN wireless network.

L2D1
Local wireless radio link with the NODE remote temperature sensor to improve room temperature regulation, without a gateway or LoRaWAN network.

Regulation

LoRaWAN connected thermostatic radiator valve for hot water radiators
FLOW PRO regulates heating directly at radiator level, room by room, according to the defined setpoints and heating schedules.

Embedded heating schedules
Heating scenarios are stored in memory to maintain regulation even in the event of a temporary loss of the LoRaWAN network.

Operating modes
Comfort, Eco, Away and Frost Protection modes adapt heating to building usage and help optimize energy consumption.

BOOST mode
Temporarily increases heating to reach the desired comfort temperature more quickly.

Temperature setting
Temperature adjustment in 0.5 °C increments for more precise heating control.

Controlled temperature
Built-in high-precision sensor with 0.1 °C resolution and ±0.4 °C accuracy for reliable regulation.

Configuration

NFC configuration
Quick and contactless product setup from a smartphone using NFC technology.

Remote configuration
Parameters, setpoints and heating schedules can be updated remotely via the LoRaWAN network.

Power supply

4 replaceable lithium AA batteries
Long-life power supply designed for collective buildings and large equipment fleets.

Battery life
Up to 12 years of battery life depending on settings and usage conditions.

Maintenance functions

Battery monitoring
Status information feedback helps anticipate interventions and simplify fleet maintenance.

Remote software update
Compatible with LoRaWAN FUOTA V2 remote updates, allowing the product to evolve without disassembly or on-site intervention.

Anti-seizing function
Automatically actuates the radiator mechanism once a month to prevent the thermostatic valve from seizing outside the heating season.

Open window detection
Heating is automatically paused for 30 minutes to prevent energy waste.

Digital tracking log
QR code and NAVIXIS software platform simplify large-scale installation, identification and maintenance.

Security and shared environments

Anti-theft protection
Lockable reinforced RUG mounting base with protective screw to prevent unauthorized removal of the thermostatic radiator valve head.

Child Lock
Disables the adjustment dial to prevent any unauthorized local change to the temperature setpoint.

Tamper removal detection
Triggers an alert if the thermostatic radiator valve head is removed from its mounting base.

Enhanced cybersecurity
Data transmitted by the product is secured end to end through double AES-128 encryption.

Reinforced RUG mounting base
Mounting base with metal inserts, designed for demanding environments such as schools, hospitals and collective housing.

CASE+ compatibility
Additional protection against impacts, tampering and attempted removal in shared environments.

Installation

Hot water radiator installation
Installation on compatible thermostatic radiator valves, with M30 x 1.5 mm radiator interface.

ADAPT compatibility
Simplified installation on many existing radiators and thermostatic valves using ADAPT adapters.

Visual identification
5 colored marking tabs included to quickly identify and distinguish equipment on site.

Usage environment

Indoor use
Designed for collective housing, hotels, schools, offices, public buildings, healthcare facilities and tertiary buildings.

Operating conditions
Operating temperature: -20 °C to +60 °C.
Humidity: 0% RH to 99% RH, non-condensing.

Compatible ecosystem

NODE
Remote temperature sensor that measures the actual room temperature independently of the radiator.

NAVIXIS
IoT supervision software for programming temperatures, managing schedules, monitoring equipment and configuring alerts.

ADAPT
Adapters for installing FLOW PRO on most radiators and thermostatic valves on the market.

CASE+
Protective cover designed to secure the thermostatic radiator valve head in shared environments.
