TRACK+ RAIL

Air Quality Monitoring Station for Underground Railway Stations

  • Multi-connectivity

    Multi-connectivity

    LoRaWAN or 4G LTE connectivity: the product communicates and adapts to all situations

  • Optimized for URTs

    Optimized for URTs

    Uses a sensor specially designed to measure fine particles specific to underground railway tunnels

  • Multi-sensor extensions with BLOCK

    Multi-sensor extensions with BLOCK

    5 modular slots for easily adding additional sensors (Ozone, NO2, etc.), ensuring flexibility and scalability

  • T°

  • Humidity

  • PM1

  • PM2.5

  • PM5

  • Pressure

  • CO2

  • LoRaWAN

  • LTE (4G)*

Datasheet Request a quote

Monitors outdoor air quality and controls fine particle emissions

Particulate Matter Measurement

Continuous or intermittent measurement. PM measurement by mass on 3 channels

Measurement accuracy

Fine particle sensor validated by an independent metrology laboratory. The device heats the air before measurement for reliable data with no impact from ambient humidity levels

360° AirFlow

Clear aerosol sampling system. Allows fine particles to enter 360° without blind spots. Ensures reliable air quality measurements and effective protection against the elements

Insect barrier

Pest protection grille integrated into the station. Preserves measurement reliability. Easy to maintain

Multi-connectivity and data security

4G LTE communication*

Multi-operator SIM card supplied with the station for optimum network coverage in over 150 countries

Local data logger

With its built-in SD card, the station stores up to 20 years of data, guaranteeing that measurements can be recorded even in white zones

Integrated plug and play solution

The open and secure LoRaWAN protocol means that the station's measurements can be used freely in the monitoring software of your choice

Enhanced cybersecurity

Data transmitted by the product is secured from end to end using double AES128 encryption

Reliable and robust

Reduced maintenance

No maintenance required for the Fine Particle sensor for 1 year (in standard configuration)

Simple installation

Thanks to its compact design and wide range of fixing accessories, the product is easy to install in any environment, on a wall or a post

Simplified on-site maintenance

Replacement of wearing parts (fine particle sensor, battery) without removing the product from its wall or pole mount

Power supply adapted to each situation

Choice of power supply

Operates on mains or DC voltage. Optional solar power kit

Battery-powered

Ideal if the power supply is intermittent (streetlights, power outages, etc.). Allows the station to operate for up to 3 days without mains power. Automatic battery recharge when power is restored.

SOLAR

Autonomous power supply via solar panel. Ideal for isolated environments. High-capacity battery for nights and days without sunlight

Fixing the station is easy

Pole fixing kit

Allows TRACK+ to be mounted on a pole or beam. Suitable for pole diameters from 60 to 400 mm. Can be installed using standard tools (Phillips screwdriver and wire cutters)

Wall mounting kit

Allows TRACK+ to be fixed to a flat surface. Easy to install. Can be installed using standard tools (Phillips screwdriver and drill)

Network & Data

CELLULAR*

Data recovery via the 4G network. Already configured with a Nexelec multi-operator SIM card. Includes 5 years' access to data from the NAVIXIS web platform.

NAVIXIS

Visualisation of measurements, curves and csv exports. Connection to third-party services via API or webhook. Configurable email and SMS alerts. Manage the status of your fleet of sensors

Specifications

  • Particulate Matter: PM1, PM2.5, PM5

    Particulate Matter: PM1, PM2.5, PM5

    Resistance: 1 µg/m3
    Repeatability error: <3
    Linearity error: <5
    Mass measurement range:
    0 to 1,000 µg/m3

  • Atmospheric Pressure

    Atmospheric Pressure

    Resolution: 1 hPa
    Accuracy: ± 2.5 hPa
    Measurement range: 300 – 1100 hPa

  • Temperature

    Temperature

    Resolution: 0.1°C
    Accuracy: ±0.3°C
    Measurement range: -30°C / +70°C

  • Humidity

    Humidity

    Resolution: 0.5% r.H.
    Accuracy: ±2% r.H.
    Measuring range: 0 – 100% R.H.

  • Carbon Dioxide (CO2)

    Carbon Dioxide (CO2)

    Resolution: 1 ppm
    Accuracy: 30 ppm or ±3%
    Measuring range: 0 – 10,000 ppm

Features

  • Conditions of use

    Outdoor environment
    Temperature: -20°C to +60°C
    Humidity: 0% RH to 95% RH (non-condensing)

  • Power supply

    Alternating current (110V – 230V)
    Direct current (5V – 35V)
    LFP lithium battery (100 Wh)
    Solar-powered*

  • Connectivity*

    • Smoke alarm. 10-year battery / Détecteur de fumée
    • LTE connectivité

  • Mounting type

    Wall-mounted
    Pole-mounted

  • Warranty**

    2 years

  • Certification

  • Kit contents

    1 TRACK+ RAIL station
    1 pole mounting kit
    1 wall mounting kit

References

Reference Designation
X951 LoRaWAN Station
P061 CELLULAR
P066 SOLAR
Technical documentation

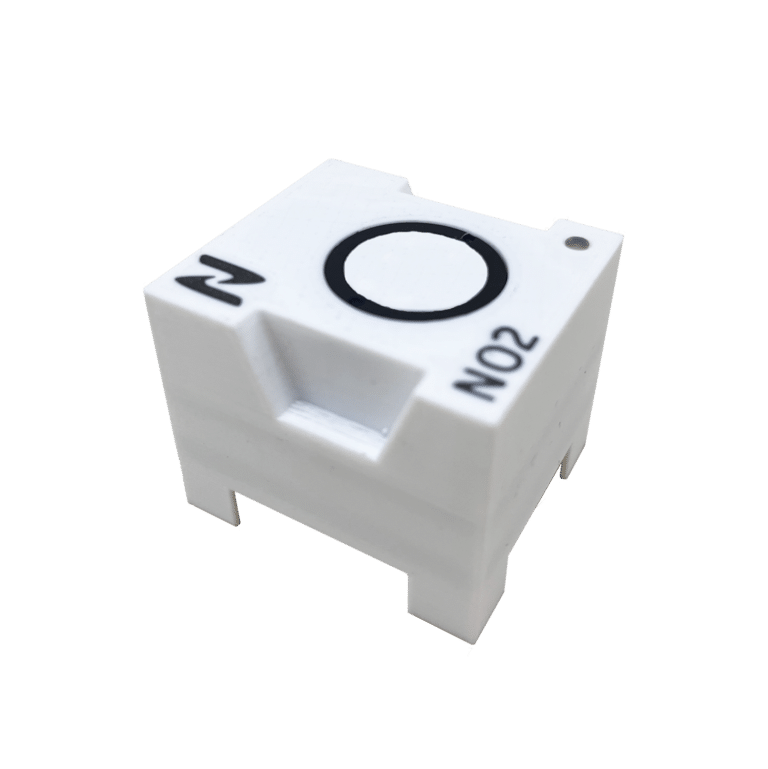

BLOCK slot: Modularity and simplicity

Each station can accommodate up to 5 BLOCK slots, making it easy to add new sensors or measurement modules. This modular architecture ensures great flexibility for future upgrades and simplified maintenance, while ensuring rapid integration of future features. Thanks to the BLOCK slots, your station can be perfectly adapted to your current and future needs.

BLOCK

Frequently Asked Questions

Our experts answer your questions

Operates on mains or DC voltage. Optional solar power kit

The product can be mounted on a wall or pole using the fixing brackets supplied.

Complementary products

*option available on request

**see conditions on the support.nexelec.fr website
